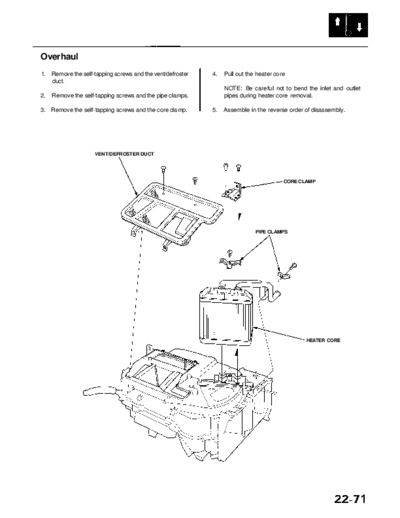

Image preview - the first page of the document



>> Download RL9604S22071A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents




Overhaul
1.   Remove the self-tapping screws and the vent/defroster   4.   Pull out the heater core
     duct.
                                                                  NOTE: Be careful not to bend the inlet and outlet
2.   Remove the self-tapping screws and the pipe clamps.          pipes during heater core removal.

3.   Remove the self-tapping screws and the core clamp.      5.   Assemble in the reverse order of disassembly.




                     VENT/DEFROSTER DUCT




                                                                                         CORE CLAMP




                                                                              PIPE CLAMPS




                                                                                                HEATER CORE
