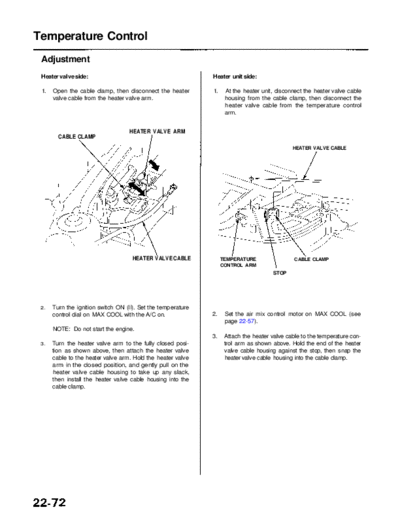

              Main Menu                 Table of Contents


Temperature Control
 Adjustment
 Heater valve side:                                           Heater unit side:

 1.   Open the cable clamp, then disconnect the heater        1.    At the heater unit, disconnect the heater valve cable
      valve cable from the heater valve arm.                        housing from the cable clamp, then disconnect the
                                                                    heater valve cable from the temperature control
                                                                    arm.


                                   HEATER VALVE ARM
        CABLE CLAMP
                                                                                              HEATER VALVE CABLE




                                     HEATER VALVE CABLE            TEMPERATURE                 CABLE CLAMP
                                                                   CONTROL ARM
                                                                                       STOP




 2.   Turn the ignition switch ON (II). Set the temperature
      control dial on MAX COOL with the A/C on.               2.    Set the air mix control motor on MAX COOL (see
                                                                    page 22-57).
      NOTE: Do not start the engine.
                                                              3.    Attach the heater valve cable to the temperature con-
 3.   Turn the heater valve arm to the fully closed posi-           trol arm as shown above. Hold the end of the heater
      tion as shown above, then attach the heater valve             valve cable housing against the stop, then snap the
      cable to the heater valve arm. Hold the heater valve          heater valve cable housing into the cable clamp.
      arm in the closed position, and gently pull on the
      heater valve cable housing to take up any slack,
      then install the heater valve cable housing into the
      cable clamp.
