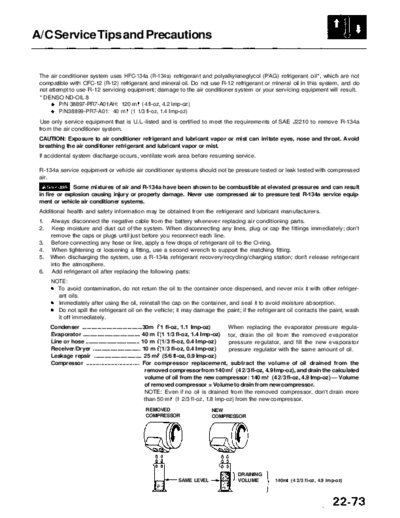

Image preview - the first page of the document



>> Download RL9604S22073A documenatation <<

Text preview - extract from the document

               Main Menu                    Table of Contents


A/C Service Tips and Precautions


 The air conditioner system uses HFC-134a (R-134a) refrigerant and polyalkyleneglycol (PAG) refrigerant oil*, which are not
 compatible with CFC-12 (R-12) refrigerant and mineral oil. Do not use R-12 refrigerant or mineral oil in this system, and do
 not attempt to use R-12 servicing equipment; damage to the air conditioner system or your servicing equipment will result.
 * DENSO ND-OIL 8
         P/N 38897-PR7-A01AH: 120 m (4 fl-oz, 4.2 Imp-oz)
         P/N38899-PR7-A01: 40 m (1 1/3 fl-oz, 1.4 Imp-oz)
 Use only service equipment that is U.L.-listed and is certified to meet the requirements of SAE J2210 to remove R-134a
 from the air conditioner system.
 CAUTION: Exposure to air conditioner refrigerant and lubricant vapor or mist can irritate eyes, nose and throat. Avoid
 breathing the air conditioner refrigerant and lubricant vapor or mist.
 If accidental system discharge occurs, ventilate work area before resuming service.

 R-134a service equipment or vehicle air conditioner systems should not be pressure tested or leak tested with compressed
 air.
               Some mixtures of air and R-134a have been shown to be combustible at elevated pressures and can result
 in fire or explosion causing injury or property damage. Never use compressed air to pressure test R-134a service equip-
 ment or vehicle air conditioner systems.
 Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
 1.   Always disconnect the negative cable from the battery whenever replacing air conditioning parts.
 2.    Keep moisture and dust out of the system. When disconnecting any lines, plug or cap the fittings immediately; don't
      remove the caps or plugs until just before you reconnect each line.
 3.   Before connecting any hose or line, apply a few drops of refrigerant oil to the O-ring.
 4.    When tightening or loosening a fitting, use a second wrench to support the matching fitting.
 5.   When discharging the system, use a R-134a refrigerant recovery/recycling/charging station; don't release refrigerant
      into the atmosphere.
 6.   Add refrigerant oil after replacing the following parts:
      NOTE:
        To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refriger-
        ant oils.
        Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
        Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash
        it off immediately.
      Condenser ........................................30m (1 fl-oz, 1.1 Imp-oz)           When replacing the evaporator pressure regula-
      Evaporator ........................................ 40 m (1 1/3 fl-oz, 1.4 Imp-oz) tor, drain the oil from the removed evaporator
      Line or hose ...................................... 10 m (1/3 fl-oz, 0.4 Imp-oz)      pressure regulator, and fill the new evaporator
      Receiver/Dryer ................................. 10 m (1/3 fl-oz, 0.4 Imp-oz)         pressure regulator with the same amount of oil.
      Leakage repair ................................. 25 m (5/6 fl-oz, 0.9 Imp-oz)
      Compressor ................................ For compressor replacement, subtract the volume of oil drained from the
                                                           removed compressor from 140 m (4 2/3 fl-oz, 4.9 Imp-oz), and drain the calculated
                                                           volume of oil from the new compressor: 140 m (4 2/3 fl-oz, 4.9 Imp-oz) -- Volume
                                                           of removed compressor = Volume to drain from new compressor.
                                                           NOTE: Even if no oil is drained from the removed compressor, don't drain more
                                                           than 50 m (1 2/3 fl-oz, 1.8 Imp-oz) from the new compressor.
                                               REMOVED                     NEW
                                               COMPRESSOR                  COMPRESSOR




                                                                                       DRAINING
                                                             SAME LEVEL                VOLUME          140m (4 2/3 fl-oz, 4.9 Imp-oz)
