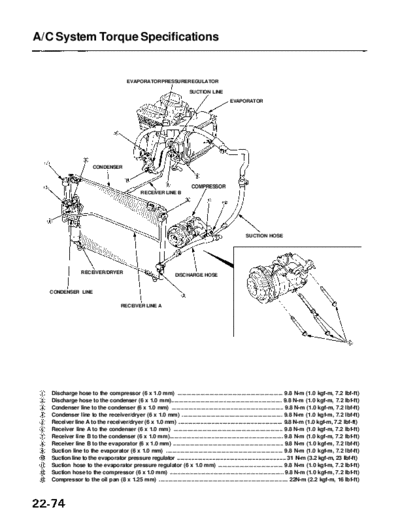

              Main Menu                        Table of Contents


A/C System Torque Specifications


                                        EVAPORATOR PRESSURE REGULATOR

                                                                       SUCTION LINE
                                                                                           EVAPORATOR




                       CONDENSER


                                                                        COMPRESSOR
                                               RECEIVER LINE B




                                                                                                   SUCTION HOSE




                 RECEIVER/DRYER                                 DISCHARGE HOSE


   CONDENSER LINE

                                     RECEIVER LINE A




   Discharge hose to the compressor (6 x 1.0 mm) ..................................................................... 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Discharge hose to the condenser (6 x 1.0 mm)........................................................................ 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Condenser line to the condenser (6 x 1.0 mm) ........................................................................ 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Condenser line to the receiver/dryer (6 x 1.0 mm) .................................................................. 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Receiver line A to the receiver/dryer (6 x 1.0 mm) .................................................................. 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Receiver line A to the condenser (6 x 1.0 mm) ........................................................................ 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Receiver line B to the condenser (6 x 1.0 mm)......................................................................... 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Receiver line B to the evaporator (6 x 1.0 mm) ........................................................................ 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Suction line to the evaporator (6 x 1.0 mm) ............................................................................ 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Suction line to the evaporator pressure regulator .................................................................... 31 N-m (3.2 kgf-m, 23 Ibf-ft)
   Suction hose to the evaporator pressure regulator (6 x 1.0 mm) .......................................... 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Suction hose to the compressor (6 x 1.0 mm) ......................................................................... 9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
   Compressor to the oil pan (8 x 1.25 mm) .................................................................................... 22N-m (2.2 kgf-m, 16 Ibf-ft)
