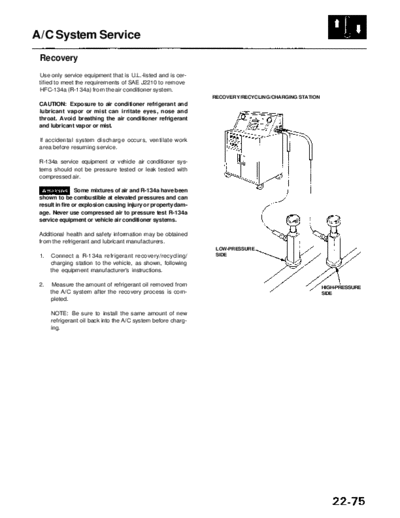

Image preview - the first page of the document



>> Download RL9604S22075A documenatation <<

Text preview - extract from the document

               Main Menu                 Table of Contents


A/C System Service
 Recovery
 Use only service equipment that is U.L.-listed and is cer-
 tified to meet the requirements of SAE J2210 to remove
 HFC-134a (R-134a) from the air conditioner system.
                                                               RECOVERY/RECYCLING/CHARGING STATION
 CAUTION: Exposure to air conditioner refrigerant and
 lubricant vapor or mist can irritate eyes, nose and
 throat. Avoid breathing the air conditioner refrigerant
 and lubricant vapor or mist.

 If accidental system discharge occurs, ventilate work
 area before resuming service.

 R-134a service equipment or vehicle air conditioner sys-
 tems should not be pressure tested or leak tested with
 compressed air.

                 Some mixtures of air and R-134a have been
 shown to be combustible at elevated pressures and can
 result in fire or explosion causing injury or property dam-
 age. Never use compressed air to pressure test R-134a
 service equipment or vehicle air conditioner systems.

 Additional health and safety information may be obtained
 from the refrigerant and lubricant manufacturers.
                                                                LOW-PRESSURE
 1.   Connect a R-134a refrigerant recovery/recycling/          SIDE
      charging station to the vehicle, as shown, following
      the equipment manufacturer's instructions.

 2.    Measure the amount of refrigerant oil removed from
                                                                                                     HIGH-PRESSURE
      the A/C system after the recovery process is com-                                              SIDE
      pleted.

      NOTE: Be sure to install the same amount of new
      refrigerant oil back into the A/C system before charg-
      ing.
