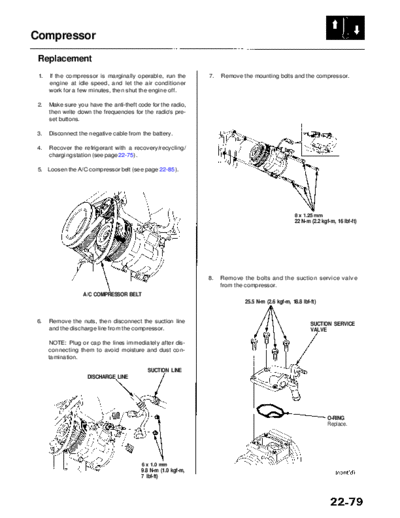

Image preview - the first page of the document
>> Download RL9604S22079A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Compressor
Replacement
1. If the compressor is marginally operable, run the 7. Remove the mounting bolts and the compressor.
engine at idle speed, and let the air conditioner
work for a few minutes, then shut the engine off.
2. Make sure you have the anti-theft code for the radio,
then write down the frequencies for the radio's pre-
set buttons.
3. Disconnect the negative cable from the battery.
4. Recover the refrigerant with a recovery/recycling/
charging station (see page 22-75).
5. Loosen the A/C compressor belt (see page 22-85).
8 x 1.25 mm
22 N-m (2.2 kgf-m, 16 Ibf-ft)
8. Remove the bolts and the suction service valve
from the compressor.
A/C COMPRESSOR BELT
25.5 N-m (2.6 kgf-m, 18.8 Ibf-ft)
6. Remove the nuts, then disconnect the suction line SUCTION SERVICE
and the discharge line from the compressor. VALVE
NOTE: Plug or cap the lines immediately after dis-
connecting them to avoid moisture and dust con-
tamination.
SUCTION LINE
DISCHARGE LINE
O-RING
Replace.
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7 Ibf-ft)
Main Menu Table of Contents
Compressor
Replacement (cont'd)
9. Remove the mounting bolts and the idler pulley. 11. Install in the reverse order of removal. Make note of
the following items.
If you're installing a new compressor, drain all
the refrigerant oil from the removed compressor,
and measure its volume. Subtract the volume of
drained oil from 140 m (4 2/3 fl-oz, 4.9 Imp-oz);
the result is the amount of oil you should drain
from the new compressor (through the suction
fitting).
Replace the O-rings with new ones at each fitting,
and apply a thin coat of refrigerant oil before
installing them.
NOTE: Be sure to use the right O-rings for HFC-
134a (R-134a) to avoid leakage.
Use refrigerant oil (ND-OIL 8) for R-134a DENSO
piston type compressors only.
To avoid contamination, do not return the oil to
the container once dispensed, and never mix it
with other refrigerant oils.
IDLER PULLEY Immediately after using the oil, reinstall the cap
on the container, and seal it to avoid moisture
MOUNTING BOLTS
absorption.
Do not spill the refrigerant oil on the vehicle; it
may damage the paint; if the refrigerant oil con-
tacts the paint, wash it off immediately.
10. Check the idler pulley bearing for play and drag. Adjust the A/C compressor belt (see page 22-85).
Replace it with a new one if it's noisy or has exces- Charge the system (see page 22-89), and test its
sive play or drag. performance (see page 22-76).
The PCM memory must be reset after reconnect-
ing the battery (see page 11-125).
Enter the anti-theft code for the radio, then enter
the customer's radio station presets.
ADJUSTING
BOLT
IDLER
PULLEY
CENTER
BOLT
10 x 1.25 mm
44 N-m (4.5 kgf-m, 33 Ibf-ft)
