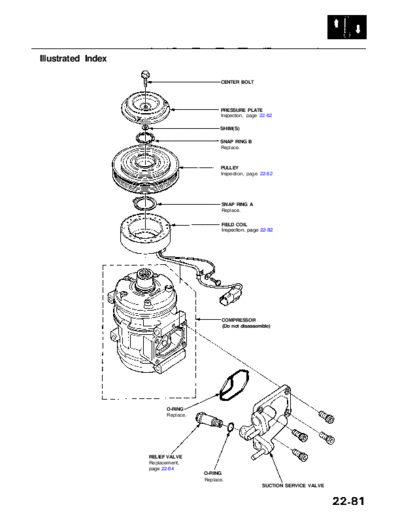

Image preview - the first page of the document
RL9604S22081A


>> Download RL9604S22081A documenatation <<

Text preview - extract from the document
        Main Menu   Table of Contents




Illustrated Index

                                                CENTER BOLT




                                                PRESSURE PLATE
                                                Inspection, page 22-82

                                                SHIM(S)

                                                SNAP RING B
                                                Replace.



                                                PULLEY
                                                Inspection, page 22-82




                                                 SNAP RING A
                                                 Replace.

                                                 FIELD COIL
                                                 Inspection, page 22-82




                                                 COMPRESSOR
                                                 (Do not disassemble)




                               O-RING
                               Replace.




                       RELIEF VALVE
                       Replacement,
                       page 22-84
                                          O-RING
                                          Replace.
                                                                  SUCTION SERVICE VALVE
