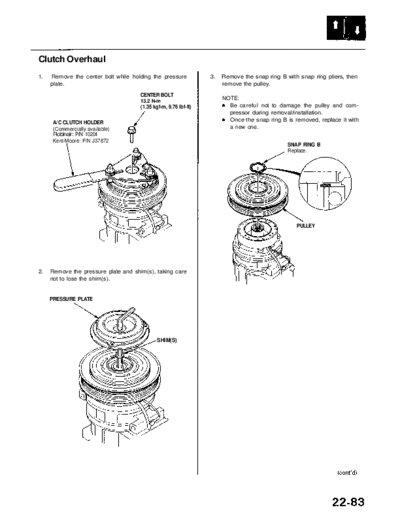

Image preview - the first page of the document



>> Download RL9604S22083A documenatation <<

Text preview - extract from the document

               Main Menu              Table of Contents




Clutch Overhaul
1.   Remove the center bolt while holding the pressure            3.   Remove the snap ring B with snap ring pliers, then
     plate.                                                            remove the pulley.

                                      CENTER BOLT
                                      13.2 N-m                         NOTE:
                                      (1.35 kgf-m, 9.76 Ibf-ft)          Be careful not to damage the pulley and com-
                                                                         pressor during removal/installation.
                                                                         Once the snap ring B is removed, replace it with
      A/C CLUTCH HOLDER
      (Commercially available)                                           a new one.
      Robinair: P/N 10204
      Kent-Moore: P/N J37872
                                                                                               SNAP RING B
                                                                                               Replace.




                                                                                                  PULLEY




2.   Remove the pressure plate and shim(s), taking care
     not to lose the shim(s).


     PRESSURE PLATE




                                              SHIM(S)
               Main Menu                 Table of Contents


Compressor
 Clutch Overhaul (cont'd)
 4.   Remove the screw from the field coil ground termi-
      nal. Remove the snap ring A with snap ring pliers,
      then remove the field coil.

      NOTE:
