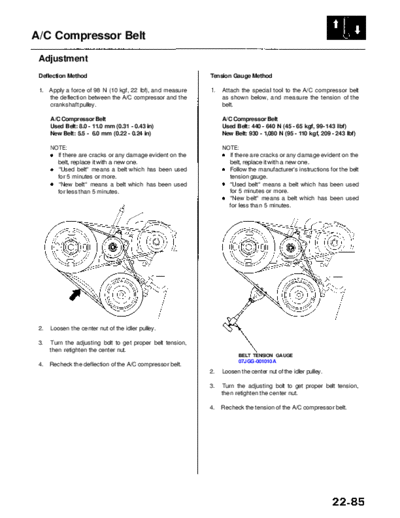

Image preview - the first page of the document



>> Download RL9604S22085A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents


A/C Compressor Belt

 Adjustment
 Deflection Method                                            Tension Gauge Method

 1.   Apply a force of 98 N (10 kgf, 22 Ibf), and measure     1.   Attach the special tool to the A/C compressor belt
      the deflection between the A/C compressor and the            as shown below, and measure the tension of the
      crankshaft pulley.                                           belt.

      A/C Compressor Belt                                          A/C Compressor Belt
      Used Belt: 8.0 - 11.0 mm (0.31 - 0.43 in)                    Used Belt: 440 - 640 N (45 - 65 kgf, 99-143 Ibf)
      New Belt: 5.5 - 6.0 mm (0.22 - 0.24 in)                      New Belt: 930 - 1,080 N (95 - 110 kgf, 209 - 243 Ibf)

      NOTE:                                                        NOTE:
        If there are cracks or any damage evident on the             If there are cracks or any damage evident on the
        belt, replace it with a new one.                             belt, replace it with a new one.
        "Used belt" means a belt which has been used                 Follow the manufacturer's instructions for the belt
        for 5 minutes or more.                                       tension gauge.
        "New belt" means a belt which has been used                  "Used belt" means a belt which has been used
        for less than 5 minutes.                                     for 5 minutes or more.
                                                                     "New belt" means a belt which has been used
                                                                     for less than 5 minutes.




 2.   Loosen the center nut of the idler pulley.

 3.   Turn the adjusting bolt to get proper belt tension,
      then retighten the center nut.
                                                                         BELT TENSION GAUGE
                                                                         07JGG-001010 A
 4.   Recheck the deflection of the A/C compressor belt.
                                                              2.   Loosen the center nut of the idler pulley.

                                                              3.   Turn the adjusting bolt to get proper belt tension,
                                                                   then retighten the center nut.

                                                              4.   Recheck the tension of the A/C compressor belt.
