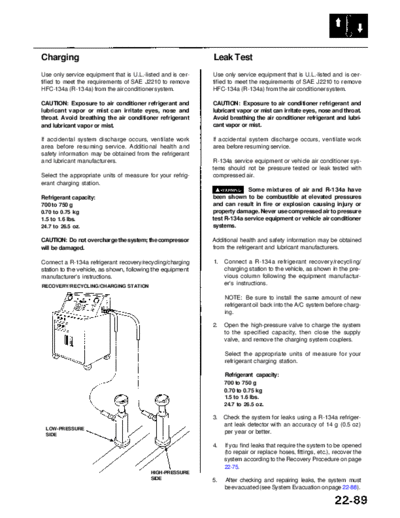

Image preview - the first page of the document

>> Download RL9604S22089A documenatation <<

Text preview - extract from the document

Main Menu Table of Contents

Charging Leak Test
Use only service equipment that is U.L.-listed and is cer- Use only service equipment that is U.L.-listed and is cer-
tified to meet the requirements of SAE J2210 to remove tified to meet the requirements of SAE J2210 to remove
HFC-134a (R-134a) from the air conditioner system. HFC-134a (R-134a) from the air conditioner system.

CAUTION: Exposure to air conditioner refrigerant and CAUTION: Exposure to air conditioner refrigerant and
lubricant vapor or mist can irritate eyes, nose and lubricant vapor or mist can irritate eyes, nose and throat.
throat. Avoid breathing the air conditioner refrigerant Avoid breathing the air conditioner refrigerant and lubri-
and lubricant vapor or mist. cant vapor or mist.

If accidental system discharge occurs, ventilate work If accidental system discharge occurs, ventilate work
area before resuming service. Additional health and area before resuming service.
safety information may be obtained from the refrigerant
and lubricant manufacturers. R-134a service equipment or vehicle air conditioner sys-
tems should not be pressure tested or leak tested with
Select the appropriate units of measure for your refrig- compressed air.
erant charging station.
Some mixtures of air and R-134a have
Refrigerant capacity: been shown to be combustible at elevated pressures
700 to 750 g and can result in fire or explosion causing injury or
0.70 to 0.75 kg property damage. Never use compressed air to pressure
1.5 to 1.6 lbs. test R-134a service equipment or vehicle air conditioner
24.7 to 26.5 oz. systems.

CAUTION: Do not overcharge the system; the compressor Additional health and safety information may be obtained
will be damaged. from the refrigerant and lubricant manufacturers.

Connect a R-134a refrigerant recovery/recycling/charging 1. Connect a R-134a refrigerant recovery/recycling/
station to the vehicle, as shown, following the equipment charging station to the vehicle, as shown in the pre-
manufacturer's instructions. vious column following the equipment manufactur-
RECOVERY/RECYCLING/CHARGING STATION er's instructions.

NOTE: Be sure to install the same amount of new
refrigerant oil back into the A/C system before charg-
ing.

2. Open the high-pressure valve to charge the system
to the specified capacity, then close the supply
valve, and remove the charging system couplers.

Select the appropriate units of measure for your
refrigerant charging station.

Refrigerant capacity:
700 to 750 g
0.70 to 0.75 kg
1.5 to 1.6 lbs.
24.7 to 26.5 oz.

3. Check the system for leaks using a R-134a refriger-
ant leak detector with an accuracy of 14 g (0.5 oz)
LOW-PRESSURE
SIDE per year or better.

4. If you find leaks that require the system to be opened
(to repair or replace hoses, fittings, etc.), recover the
system according to the Recovery Procedure on page
22-75.
HIGH-PRESSURE
SIDE 5. After checking and repairing leaks, the system must
be evacuated (see System Evacuation on page 22-88).
