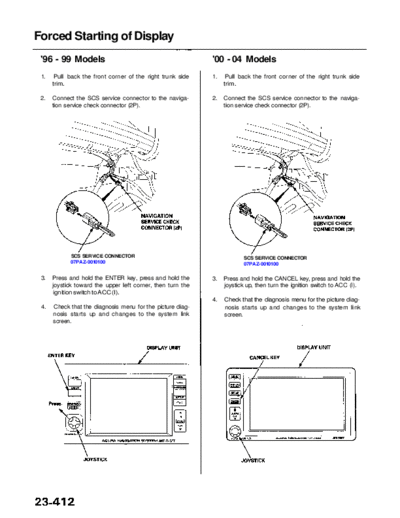

Text preview - extract from the document
              Main Menu                Table of Contents


Forced Starting of Display
 '96 - 99 Models                                             '00 - 04 Models
 1.    Pull back the front corner of the right trunk side    1.    Pull back the front corner of the right trunk side
      trim.                                                       trim.

 2.   Connect the SCS service connector to the naviga-       2.   Connect the SCS service connector to the naviga-
      tion service check connector (2P).                          tion service check connector (2P).




            SCS SERVICE CONNECTOR                                         SCS SERVICE CONNECTOR
            07PAZ-0010100                                                 07PAZ-0010100


 3.   Press and hold the ENTER key, press and hold the       3.   Press and hold the CANCEL key, press and hold the
      joystick toward the upper left corner, then turn the        joystick up, then turn the ignition switch to ACC (I).
      ignition switch to ACC (I).
                                                             4.   Check that the diagnosis menu for the picture diag-
 4.   Check that the diagnosis menu for the picture diag-         nosis starts up and changes to the system link
      nosis starts up and changes to the system link              screen.
      screen.
