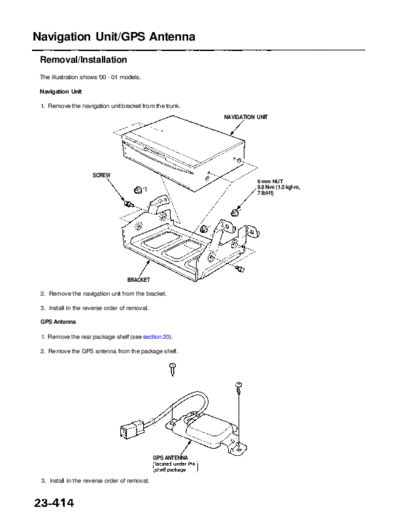

Image preview - the first page of the document



>> Download RL9604S23414A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents


Navigation Unit/GPS Antenna
 Removal/Installation
 The illustration shows '00 - 01 models.

 Navigation Unit

 1. Remove the navigation unit bracket from the trunk.
                                                             NAVIGATION UNIT




                     SCREW
                                                                        6 mm NUT
                                                                        9.8 N-m (1.0 kgf-m,
                                                                        7 Ibf-ft)




                                   BRACKET

 2. Remove the navigation unit from the bracket.

 3. Install in the reverse order of removal.

 GPS Antenna

 1. Remove the rear package shelf (see section 20).

 2. Remove the GPS antenna from the package shelf.




                                               GPS ANTENNA



 3. Install in the reverse order of removal.
