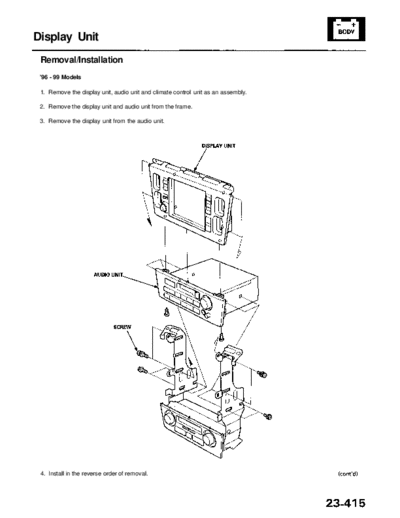

Image preview - the first page of the document



>> Download RL9604S23415A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents


Display Unit
 Removal/Installation
 '96 - 99 Models

 1. Remove the display unit, audio unit and climate control unit as an assembly.

 2. Remove the display unit and audio unit from the frame.

 3. Remove the display unit from the audio unit.




 4. Install in the reverse order of removal.
              Main Menu                 Table of Contents


Display Unit
 Removal/Installation (cont'd)
 '00 - 01 Models

 1. Remove the center panel, display unit, audio unit, climate control unit and bracket as an assembly (see section 20).

 2. Remove the display unit from the bracket.




 3. Install in the reverse order of removal.
