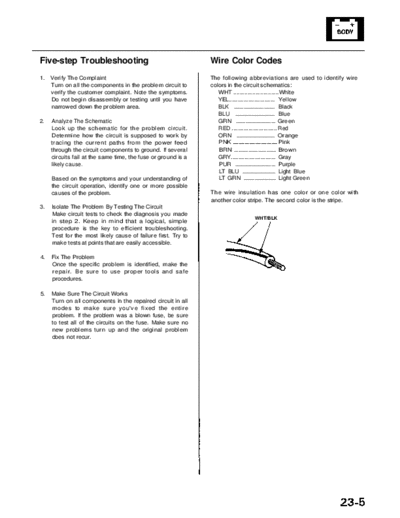

Image preview - the first page of the document



>> Download RL9604S23005A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents




Five-step Troubleshooting                                      Wire Color Codes
1.   Verify The Complaint                                      The following abbreviations are used to identify wire
     Turn on all the components in the problem circuit to      colors in the circuit schematics:
     verify the customer complaint. Note the symptoms.            WHT .............................White
     Do not begin disassembly or testing until you have           YEL............................... Yellow
     narrowed down the problem area.                              BLK .............................. Black
                                                                  BLU .............................. Blue
2.   Analyze The Schematic                                        GRN ............................. Green
     Look up the schematic for the problem circuit.               RED .............................. Red
     Determine how the circuit is supposed to work by             ORN ............................. Orange
     tracing the current paths from the power feed                PNK .............................. Pink
     through the circuit components to ground. If several         BRN .............................. Brown
     circuits fail at the same time, the fuse or ground is a      GRY.............................. Gray
     likely cause.                                                PUR .............................. Purple
                                                                  LT BLU ......................... Light Blue
     Based on the symptoms and your understanding of              LT GRN ........................ Light Green
     the circuit operation, identify one or more possible
     causes of the problem.                                    The wire insulation has one color or one color with
                                                               another color stripe. The second color is the stripe.
3.   Isolate The Problem By Testing The Circuit
     Make circuit tests to check the diagnosis you made
                                                                              WHT/BLK
     in step 2. Keep in mind that a logical, simple
     procedure is the key to efficient troubleshooting.
     Test for the most likely cause of failure first. Try to
     make tests at points that are easily accessible.

4.   Fix The Problem
     Once the specific problem is identified, make the
     repair. Be sure to use proper tools and safe
     procedures.

5.   Make Sure The Circuit Works
     Turn on all components in the repaired circuit in all
     modes to make sure you've fixed the entire
     problem. If the problem was a blown fuse, be sure
     to test all of the circuits on the fuse. Make sure no
     new problems turn up and the original problem
     does not recur.
