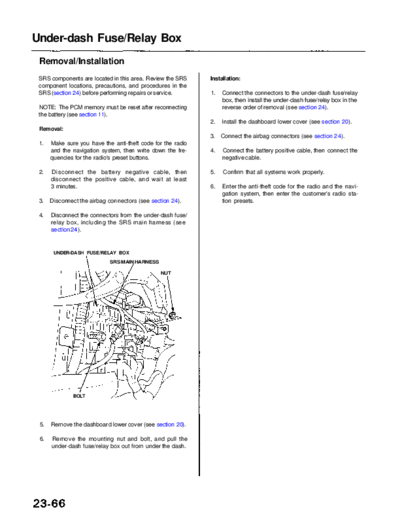

               Main Menu                Table of Contents


Under-dash Fuse/Relay Box
 Removal/Installation
 SRS components are located in this area. Review the SRS     Installation:
 component locations, precautions, and procedures in the
 SRS (section 24) before performing repairs or service.      1.   Connect the connectors to the under-dash fuse/relay
                                                                  box, then install the under-dash fuse/relay box in the
 NOTE: The PCM memory must be reset after reconnecting            reverse order of removal (see section 24).
 the battery (see section 11).
                                                             2.   Install the dashboard lower cover (see section 20).
 Removal:
                                                             3.   Connect the airbag connectors (see section 24).
 1.   Make sure you have the anti-theft code for the radio
      and the navigation system, then write down the fre-    4.   Connect the battery positive cable, then connect the
      quencies for the radio's preset buttons.                    negative cable.

 2.   Disconnect the battery negative cable, then            5.   Confirm that all systems work properly.
      disconnect the positive cable, and wait at least
      3 minutes.                                             6.   Enter the anti-theft code for the radio and the navi-
                                                                  gation system, then enter the customer's radio sta-
 3.   Disconnect the airbag connectors (see section 24).          tion presets.

 4.   Disconnect the connectors from the under-dash fuse/
      relay box, including the SRS main harness (see
      section 24).


       UNDER-DASH FUSE/RELAY BOX
                            SRS MAIN HARNESS

                                                NUT




              BOLT




 5.   Remove the dashboard lower cover (see section 20).

 6.   Remove the mounting nut and bolt, and pull the
      under-dash fuse/relay box out from under the dash.
