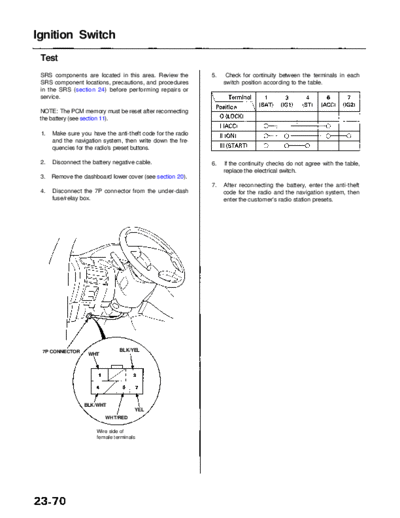

Image preview - the first page of the document
RL9604S23070A


>> Download RL9604S23070A documenatation <<

Text preview - extract from the document
              Main Menu                   Table of Contents


Ignition Switch
 Test
 SRS components are located in this area. Review the          5.    Check for continuity between the terminals in each
 SRS component locations, precautions, and procedures              switch position according to the table.
 in the SRS (section 24) before performing repairs or
 service.

 NOTE: The PCM memory must be reset after reconnecting
 the battery (see section 11).

 1.   Make sure you have the anti-theft code for the radio
      and the navigation system, then write down the fre-
      quencies for the radio's preset buttons.

 2.   Disconnect the battery negative cable.                  6.   If the continuity checks do not agree with the table,
                                                                   replace the electrical switch.
 3.   Remove the dashboard lower cover (see section 20).
                                                              7.   After reconnecting the battery, enter the anti-theft
 4.   Disconnect the 7P connector from the under-dash              code for the radio and the navigation system, then
      fuse/relay box.                                              enter the customer's radio station presets.




 7P CONNECTOR                   BLK/YEL
                   WHT




                  BLK/WHT
                                      YEL
                          WHT/RED

                       Wire side of
                       female terminals
