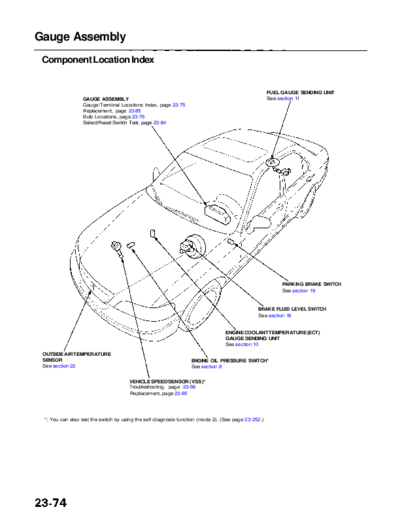

Image preview - the first page of the document



>> Download RL9604S23074A documenatation <<

Text preview - extract from the document

             Main Menu                    Table of Contents


Gauge Assembly
 Component Location Index


                                                                                                     FUEL GAUGE SENDING UNIT
                 GAUGE ASSEMBLY                                                                      See section 11
                 Gauge/Terminal Locations Index, page 23-75
                 Replacement, page 23-85
                 Bulb Locations, page 23-76
                 Select/Reset Switch Test, page 23-84




                                                                                                          PARKING BRAKE SWITCH
                                                                                                          See section 19


                                                                                               BRAKE FLUID LEVEL SWITCH
                                                                                               See section 19


                                                                                ENGINE COOLANT TEMPERATURE (ECT)
                                                                                GAUGE SENDING UNIT
                                                                                See section 10

 OUTSIDE AIR TEMPERATURE
 SENSOR                                                          ENGINE OIL PRESSURE SWITCH*
 See section 22                                                  See section 8


                                      VEHICLE SPEED SENSOR (VSS)*
                                      Troubleshooting, page 23-86
                                      Replacement, page 23-85




 *: You can also test the switch by using the self-diagnosis function (mode 2). (See page 23-252.)
