RL9604S23075A


>> Download RL9604S23075A documenatation <<

Text preview - extract from the document

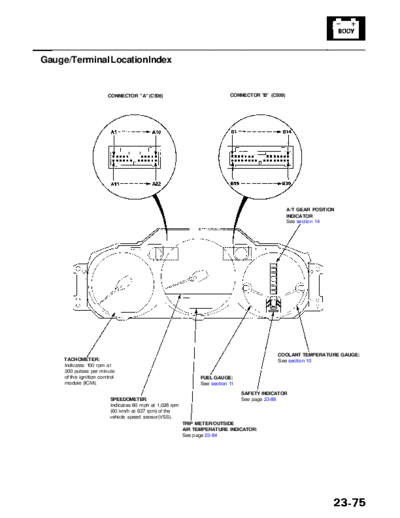

         Main Menu                    Table of Contents




Gauge/Terminal Location Index


                        CONNECTOR "A" (C508)                               CONNECTOR "B" (C509)




                                                                                                  A/T GEAR POSITION
                                                                                                  INDICATOR
                                                                                                  See section 14




                                                                                            COOLANT TEMPERATURE GAUGE:
     TACHOMETER:                                                                            See section 10
     Indicates 100 rpm at
     300 pulses per minute
     of the ignition control                                   FUEL GAUGE:
     module (ICM).                                             See section 11

                                                                                SAFETY INDICATOR
                         SPEEDOMETER:                                           See page 23-88
                         Indicates 60 mph at 1,026 rpm
                         (60 km/h at 637 rpm) of the
                         vehicle speed sensor(VSS).
                                                         TRIP METER/OUTSIDE
                                                         AIR TEMPERATURE INDICATOR:
                                                         See page 23-84
