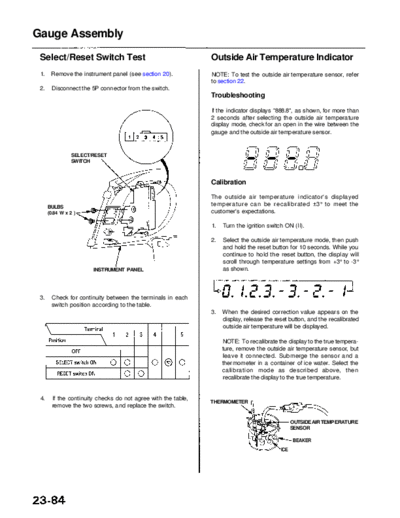

Image preview - the first page of the document



>> Download RL9604S23084A documenatation <<

Text preview - extract from the document

                  Main Menu               Table of Contents

Gauge Assembly
 Select/Reset Switch Test                                       Outside Air Temperature Indicator
 1.    Remove the instrument panel (see section 20).            NOTE: To test the outside air temperature sensor, refer
                                                                to section 22.
 2.     Disconnect the 5P connector from the switch.
                                                                Troubleshooting

                                                                If the indicator displays "888.8", as shown, for more than
                                                                2 seconds after selecting the outside air temperature
                                                                display mode, check for an open in the wire between the
                                                                gauge and the outside air temperature sensor.



                SELECT/RESET
                SWITCH



                                                                Calibration

                                                                The outside air temperature indicator's displayed
      BULBS                                                     temperature can be recalibrated
