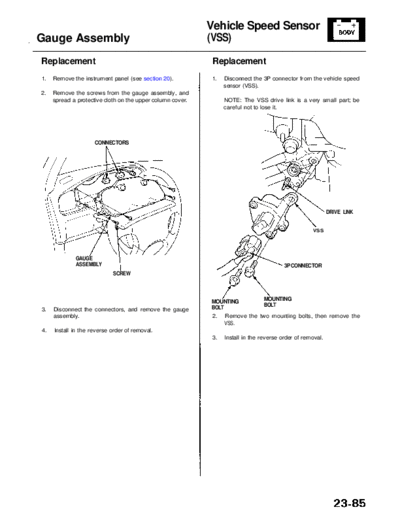

Image preview - the first page of the document



>> Download RL9604S23085A documenatation <<

Text preview - extract from the document

             Main Menu                  Table of Contents
                                                            Vehicle Speed Sensor
Gauge Assembly                                              (VSS)

Replacement                                                  Replacement
1.   Remove the instrument panel (see section 20).           1.   Disconnect the 3P connector from the vehicle speed
                                                                  sensor (VSS).
2.   Remove the screws from the gauge assembly, and
     spread a protective cloth on the upper column cover.         NOTE: The VSS drive link is a very small part; be
                                                                  careful not to lose it.




                     CONNECTORS




                                                                                                             DRIVE LINK


                                                                                                     VSS




             GAUGE
             ASSEMBLY                                                                     3P CONNECTOR
                            SCREW



                                                                                 MOUNTING
                                                            MOUNTING
                                                            BOLT                 BOLT
3.   Disconnect the connectors, and remove the gauge
     assembly.                                               2.   Remove the two mounting bolts, then remove the
                                                                  VSS.
4.   Install in the reverse order of removal.
                                                             3.   Install in the reverse order of removal.
