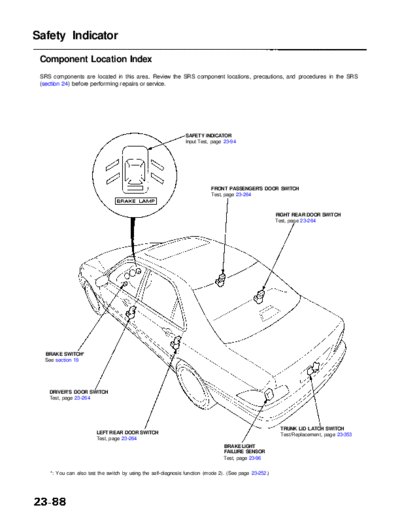

Image preview - the first page of the document



>> Download RL9604S23088A documenatation <<

Text preview - extract from the document

               Main Menu                    Table of Contents


Safety Indicator
 Component Location Index
 SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
 (section 24) before performing repairs or service.




                                                                SAFETY INDICATOR
                                                                Input Test, page 23-94




                                                                           FRONT PASSENGER'S DOOR SWITCH
                                                                           Test, page 23-264



                                                                                                        RIGHT REAR DOOR SWITCH
                                                                                                        Test, page 23-264




   BRAKE SWITCH*
   See section 19




    DRIVER'S DOOR SWITCH
    Test, page 23-264




                                                                                                         TRUNK LID LATCH SWITCH
                        LEFT REAR DOOR SWITCH                                                            Test/Replacement, page 23-353
                        Test, page 23-264
                                                                                BRAKE LIGHT
                                                                                FAILURE SENSOR
                                                                                Test, page 23-96

    *: You can also test the switch by using the self-diagnosis function (mode 2). (See page 23-252.)
