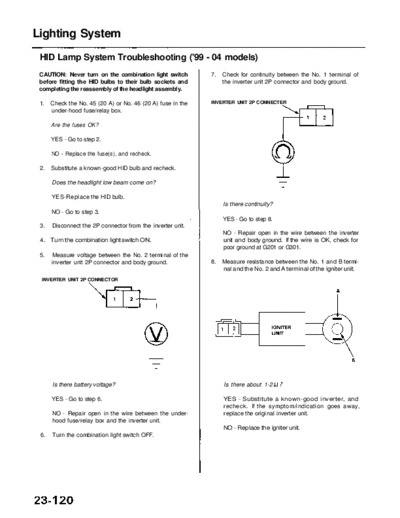

Image preview - the first page of the document



>> Download RL9604S23120A documenatation <<

Text preview - extract from the document

               Main Menu                Table of Contents

Lighting System
 HID Lamp System Troubleshooting ('99 - 04 models)
 CAUTION: Never turn on the combination light switch         7.   Check for continuity between the No. 1 terminal of
 before fitting the HID bulbs to their bulb sockets and           the inverter unit 2P connector and body ground.
 completing the reassembly of the headlight assembly.

 1.   Check the No. 45 (20 A) or No. 46 (20 A) fuse in the   INVERTER UNIT 2P CONNECTER
      under-hood fuse/relay box.

      Are the fuses OK?

      YES - Go to step 2.

      NO - Replace the fuse(s), and recheck.

 2.   Substitute a known-good HID bulb and recheck.

      Does the headlight low beam come on?

      YES-Replace the HID bulb.
                                                                  Is there continuity?
      NO - Go to step 3.
                                                                  YES - Go to step 8.
 3.   Disconnect the 2P connector from the inverter unit.
                                                                  NO - Repair open in the wire between the inverter
 4. Turn the combination light switch ON.                         unit and body ground. If the wire is OK, check for
                                                                  poor ground at G201 or G301.
 5.   Measure voltage between the No. 2 terminal of the
      inverter unit 2P connector and body ground.            8.   Measure resistance between the No. 1 and B termi-
                                                                  nal and the No. 2 and A terminal of the igniter unit.
 INVERTER UNIT 2P CONNECTOR




      Is there battery voltage?                                   Is there about 1-2

      YES - Go to step 6.                                         YES - Substitute a known-good inverter, and
                                                                  recheck. If the symptom/indication goes away,
      NO - Repair open in the wire between the under-             replace the original inverter unit.
      hood fuse/relay box and the inverter unit.
                                                                  NO - Replace the igniter unit.
 6.   Turn the combination light switch OFF.
