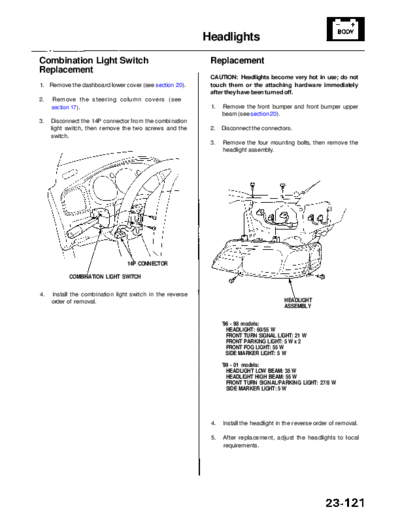

Image preview - the first page of the document



>> Download RL9604S23121A documenatation <<

Text preview - extract from the document

             Main Menu                Table of Contents


                                                           Headlights
Combination Light Switch                                    Replacement
Replacement
                                                            CAUTION: Headlights become very hot in use; do not
1. Remove the dashboard lower cover (see section 20).       touch them or the attaching hardware immediately
                                                            after they have been turned off.
2.   Remove the steering column covers (see
     section 17).                                           1.   Remove the front bumper and front bumper upper
                                                                 beam (see section 20).
3.   Disconnect the 14P connector from the combination
     light switch, then remove the two screws and the       2.   Disconnect the connectors.
     switch.
                                                            3.   Remove the four mounting bolts, then remove the
                                                                 headlight assembly.




                                 14P CONNECTOR

           COMBINATION LIGHT SWITCH


4.   Install the combination light switch in the reverse
     order of removal.                                                                   HEADLIGHT
                                                                                         ASSEMBLY


                                                                 '96 - 98 models:
                                                                   HEADLIGHT: 60/55 W
                                                                   FRONT TURN SIGNAL LIGHT: 21 W
                                                                   FRONT PARKING LIGHT: 5 W x 2
                                                                   FRONT FOG LIGHT: 55 W
                                                                   SIDE MARKER LIGHT: 5 W

                                                                 '99 - 01 models:
                                                                   HEADLIGHT LOW BEAM: 35 W
                                                                   HEADLIGHT HIGH BEAM: 55 W
                                                                   FRONT TURN SIGNAL/PARKING LIGHT: 27/8 W
                                                                   SIDE MARKER LIGHT: 5 W




                                                            4.   Install the headlight in the reverse order of removal.

                                                            5.   After replacement, adjust the headlights to local
                                                                 requirements.
