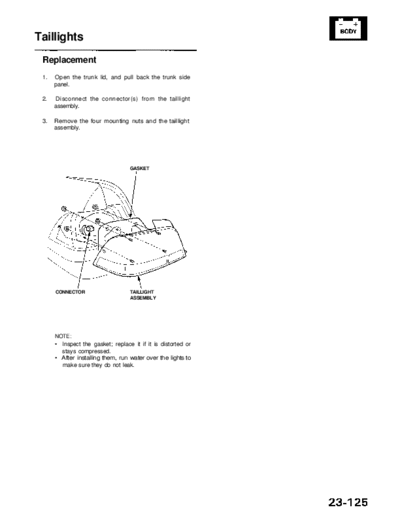

Image preview - the first page of the document
RL9604S23125A


>> Download RL9604S23125A documenatation <<

Text preview - extract from the document
             Main Menu                  Table of Contents


Taillights
 Replacement
 1.   Open the trunk lid, and pull back the trunk side
      panel.

 2.    Disconnect the connector(s) from the taillight
      assembly.

 3.   Remove the four mounting nuts and the taillight
      assembly.




                                   GASKET




      CONNECTOR                    TAILLIGHT
                                   ASSEMBLY




      NOTE:
