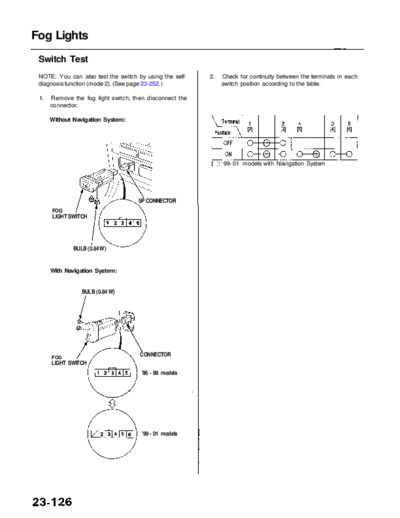

Image preview - the first page of the document



>> Download RL9604S23126A documenatation <<

Text preview - extract from the document

              Main Menu              Table of Contents


Fog Lights
 Switch Test
 NOTE: You can also test the switch by using the self-   2.   Check for continuity between the terminals in each
 diagnosis function (mode 2). (See page 23-252.)              switch position according to the table.

 1.   Remove the fog light switch, then disconnect the
      connector.

      Without Navigation System:




                                                              '99-01 models with Navigation System




                                    5P CONNECTOR
      FOG
      LIGHT SWITCH




              BULB (0.84 W)


      With Navigation System:


                 BULB (0.84 W)




      FOG                            CONNECTOR
      LIGHT SWITCH
                                      '96 - 98 models




                                      '99 - 01 models
