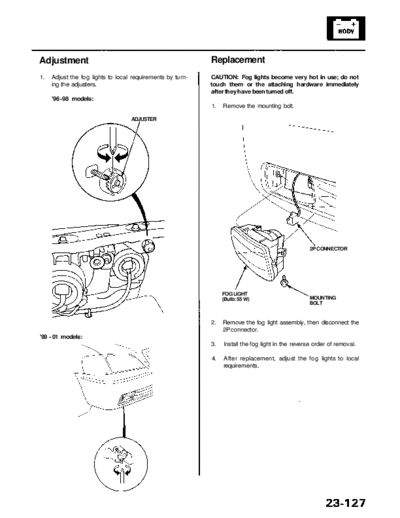

             Main Menu                 Table of Contents




Adjustment                                                  Replacement
1.   Adjust the fog lights to local requirements by turn-   CAUTION: Fog lights become very hot in use; do not
     ing the adjusters.                                     touch them or the attaching hardware immediately
                                                            after they have been turned off.
     '96-98 models:
                                                            1.   Remove the mounting bolt.

                                   ADJUSTER




                                                                                                    2P CONNECTOR




                                                                 FOG LIGHT
                                                                 (Bulb: 55 W)                       MOUNTING
                                                                                                    BOLT


                                                            2.   Remove the fog light assembly, then disconnect the
                                                                 2P connector.
'99 - 01 models:
                                                            3.   Install the fog light in the reverse order of removal.

                                                            4.   After replacement, adjust the fog lights to local
                                                                 requirements.
