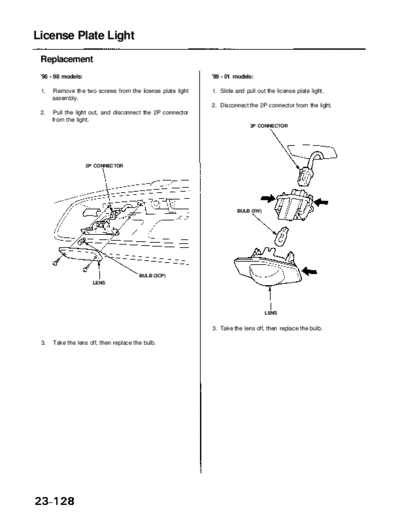

              Main Menu                  Table of Contents


License Plate Light
 Replacement
 '96 - 98 models:                                            '99 - 01 models:

 1.   Remove the two screws from the license plate light     1. Slide and pull out the license plate light.
      assembly.
                                                             2. Disconnect the 2P connector from the light.
 2.    Pull the light out, and disconnect the 2P connector
      from the light.
                                                                            2P CONNECTOR




                    2P CONNECTOR




                                                                       BULB (5W)




                                        BULB (3CP)
                      LENS




                                                                                   LENS


                                                             3. Take the lens off, then replace the bulb.

 3.   Take the lens off, then replace the bulb.
