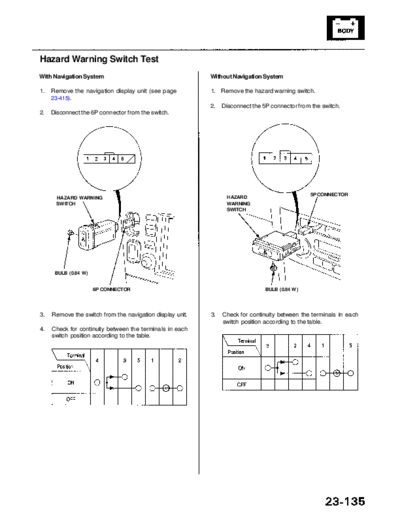

              Main Menu               Table of Contents




Hazard Warning Switch Test
With Navigation System                                     Without Navigation System

1.   Remove the navigation display unit (see page          1. Remove the hazard warning switch.
     23-415).
                                                           2.   Disconnect the 5P connector from the switch.
2.   Disconnect the 6P connector from the switch.




                                                                                                5P CONNECTOR
       HAZARD WARNING                                            HAZARD
       SWITCH                                                    WARNING
                                                                 SWITCH




      BULB (0.84 W)


                      6P CONNECTOR                                              BULB (0.84 W)




3.   Remove the switch from the navigation display unit.   3.   Check for continuity between the terminals in each
                                                                switch position according to the table.
4.   Check for continuity between the terminals in each
     switch position according to the table.
