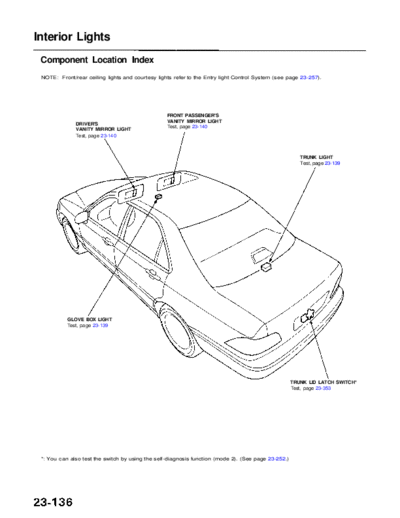

Image preview - the first page of the document
RL9604S23136A


>> Download RL9604S23136A documenatation <<

Text preview - extract from the document
              Main Menu                 Table of Contents


Interior Lights
 Component Location Index
 NOTE: Front/rear ceiling lights and courtesy lights refer to the Entry light Control System (see page 23-257).




                                                  FRONT PASSENGER'S
                                                  VANITY MIRROR LIGHT
              DRIVER'S
                                                  Test, page 23-140
              VANITY MIRROR LIGHT
              Test, page 23-140



                                                                                                        TRUNK LIGHT
                                                                                                        Test, page 23-139




           GLOVE BOX LIGHT
           Test, page 23-139




                                                                                                     TRUNK LID LATCH SWITCH*
                                                                                                     Test, page 23-353




 *: You can also test the switch by using the self-diagnosis function (mode 2). (See page 23-252.)
