>> Download RL9604S23139A documenatation <<Text preview - extract from the document Main Menu Table of Contents

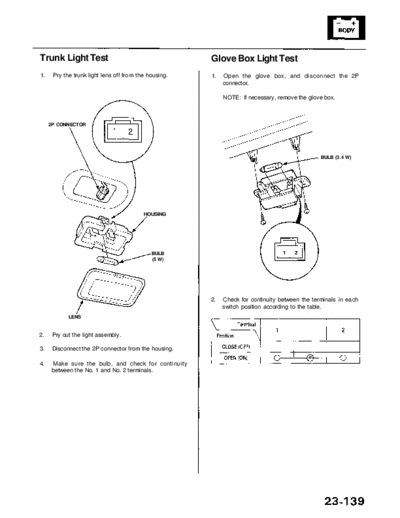

Trunk Light Test Glove Box Light Test
1. Pry the trunk light lens off from the housing. 1. Open the glove box, and disconnect the 2P
connector.
NOTE: If necessary, remove the glove box.
2P CONNECTOR
BULB (3.4 W)
HOUSING
BULB
(5 W)
2. Check for continuity between the terminals in each
switch position according to the table.
LENS
2. Pry out the light assembly.
3. Disconnect the 2P connector from the housing.
4. Make sure the bulb, and check for continuity
between the No. 1 and No. 2 terminals.
