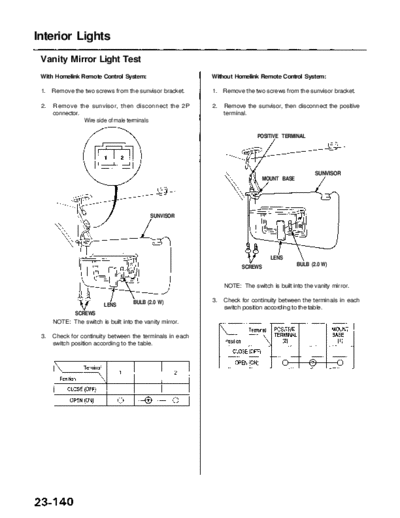

             Main Menu                 Table of Contents


Interior Lights
 Vanity Mirror Light Test
 With Homelink Remote Control System:                      Without Homelink Remote Control System:

 1.   Remove the two screws from the sunvisor bracket.     1.   Remove the two screws from the sunvisor bracket.

 2.   Remove the sunvisor, then disconnect the 2P          2.   Remove the sunvisor, then disconnect the positive
      connector.                                                terminal.
                 Wire side of male terminals

                                                                            POSITIVE TERMINAL




                                                                                                   SUNVISOR
                                                                               MOUNT BASE




                                            SUNVISOR




                                                                                  LENS
                                                                      SCREWS                BULB (2.0 W)


                                                                NOTE: The switch is built into the vanity mirror.

                                     BULB (2.0 W)          3.   Check for continuity between the terminals in each
                         LENS                                   switch position according to the table.
            SCREWS
      NOTE: The switch is built into the vanity mirror.

 3.   Check for continuity between the terminals in each
      switch position according to the table.
