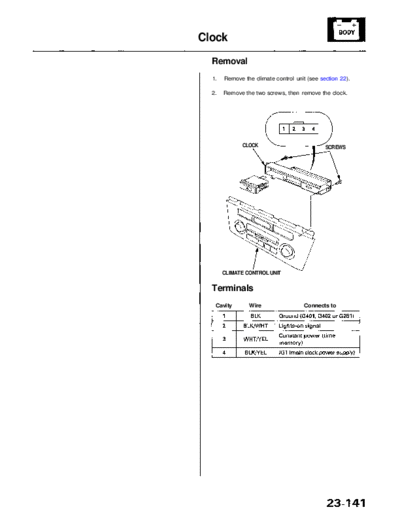

Image preview - the first page of the document



>> Download RL9604S23141A documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents


                                Clock
                                  Removal
                                  1.   Remove the climate control unit (see section 22).

                                  2.   Remove the two screws, then remove the clock.




                                              CLOCK                           SCREWS




                                       CLIMATE CONTROL UNIT


                                  Terminals
                                   Cavity       Wire                  Connects to
