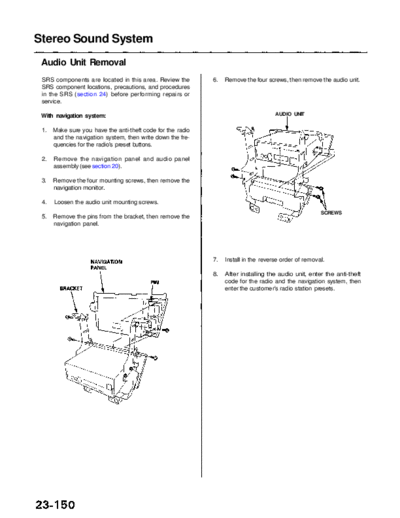

             Main Menu                Table of Contents



Stereo Sound System
 Audio Unit Removal
 SRS components are located in this area. Review the         6.   Remove the four screws, then remove the audio unit.
 SRS component locations, precautions, and procedures
 in the SRS (section 24) before performing repairs or
 service.

 With navigation system:                                                              AUDIO UNIT


 1.   Make sure you have the anti-theft code for the radio
      and the navigation system, then write down the fre-
      quencies for the radio's preset buttons.

 2.   Remove the navigation panel and audio panel
      assembly (see section 20).

 3.   Remove the four mounting screws, then remove the
      navigation monitor.

 4.   Loosen the audio unit mounting screws.
                                                                                                        SCREWS
 5.   Remove the pins from the bracket, then remove the
      navigation panel.




                                                             7.   Install in the reverse order of removal.

                                                             8.   After installing the audio unit, enter the anti-theft
                                                                  code for the radio and the navigation system, then
                                                                  enter the customer's radio station presets.
               Main Menu                 Table of Contents




Without navigation system:

1.   Make sure you have the anti-theft code for the
     radio, then write down the frequencies for the
     radio's preset buttons.

2.   Remove the automatic climate control panel and
     audio panel assembly (see section 20).




                                        SCREW



     AUDIO
     UNIT




        BOLT

                 BRACKET




3.    Remove the seven (or eight) mounting screws, then
      remove the audio unit.

4.    Install in the reverse order of removal.

5.    After installing the audio unit, enter the anti-theft
     code for the radio, then enter the customer's radio
     station presets.
