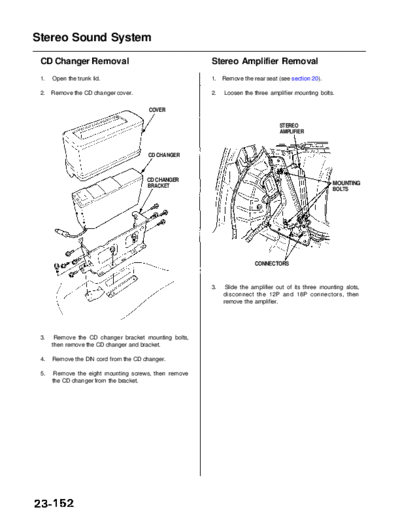

              Main Menu              Table of Contents


Stereo Sound System
 CD Changer Removal                                      Stereo Amplifier Removal
 1.   Open the trunk lid.                                1.   Remove the rear seat (see section 20).

 2.   Remove the CD changer cover.                       2.   Loosen the three amplifier mounting bolts.


                                        COVER

                                                                                   STEREO
                                                                                   AMPLIFIER



                                        CD CHANGER



                                       CD CHANGER                                                       MOUNTING
                                       BRACKET                                                          BOLTS




                                                                          CONNECTORS



                                                         3.    Slide the amplifier out of its three mounting slots,
                                                              disconnect the 12P and 18P connectors, then
                                                              remove the amplifier.




 3.    Remove the CD changer bracket mounting bolts,
      then remove the CD changer and bracket.

 4.   Remove the DIN cord from the CD changer.

 5.    Remove the eight mounting screws, then remove
      the CD changer from the bracket.
