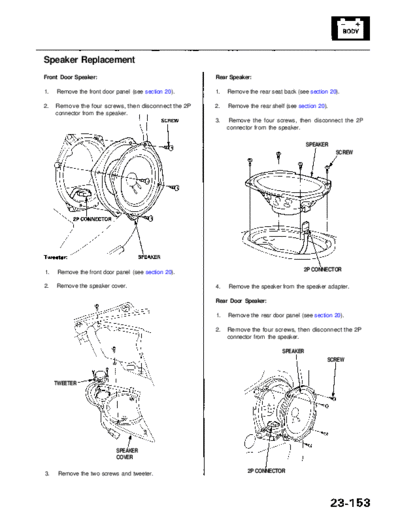

Speaker Replacement
Front Door Speaker: Rear Speaker:
1. Remove the front door panel (see section 20). 1. Remove the rear seat back (see section 20).
2. Remove the four screws, then disconnect the 2P 2. Remove the rear shelf (see section 20).
connector from the speaker.
3. Remove the four screws, then disconnect the 2P
connector from the speaker.
SPEAKER
SCREW
1. Remove the front door panel (see section 20). 2P CONNECTOR
2. Remove the speaker cover. 4. Remove the speaker from the speaker adapter.
Rear Door Speaker:
1. Remove the rear door panel (see section 20).
2. Remove the four screws, then disconnect the 2P
connector from the speaker.
SPEAKER
SCREW
TWEETER
SPEAKER
COVER
3. Remove the two screws and tweeter. 2P CONNECTOR
