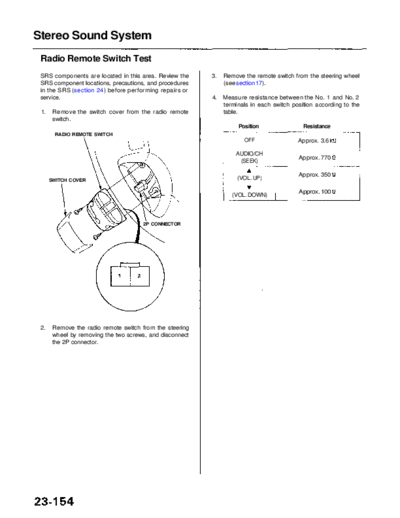

              Main Menu              Table of Contents


Stereo Sound System
 Radio Remote Switch Test
 SRS components are located in this area. Review the      3.   Remove the remote switch from the steering wheel
 SRS component locations, precautions, and procedures          (see section 17).
 in the SRS (section 24) before performing repairs or
 service.                                                 4.   Measure resistance between the No. 1 and No. 2
                                                               terminals in each switch position according to the
 1.    Remove the switch cover from the radio remote           table.
       switch.
                                                                    Position                Resistance
       RADIO REMOTE SWITCH
                                                                      OFF                 Approx. 3.6

                                                                   AUDIO/CH
                                                                                          Approx. 770
                                                                    (SEEK)

                                                                                          Approx. 350
      SWITCH COVER                                                  (VOL. UP)

                                                                                          Approx. 100
                                                                  (VOL. DOWN)




                                      2P CONNECTOR




 2.    Remove the radio remote switch from the steering
       wheel by removing the two screws, and disconnect
       the 2P connector.
