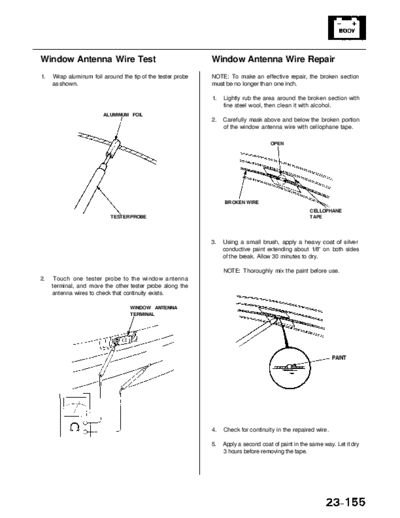

Image preview - the first page of the document



>> Download RL9604S23155A documenatation <<

Text preview - extract from the document

             Main Menu                 Table of Contents




Window Antenna Wire Test                                     Window Antenna Wire Repair
1.   Wrap aluminum foil around the tip of the tester probe   NOTE: To make an effective repair, the broken section
     as shown.                                               must be no longer than one inch.

                                                             1.   Lightly rub the area around the broken section with
                                                                  fine steel wool, then clean it with alcohol.
                         ALUMINUM FOIL
                                                             2.   Carefully mask above and below the broken portion
                                                                  of the window antenna wire with cellophane tape.

                                                                                     OPEN




                                                                  BROKEN WIRE
                                                                                                     CELLOPHANE
                           TESTER PROBE                                                              TAPE




                                                             3.   Using a small brush, apply a heavy coat of silver
                                                                  conductive paint extending about 1/8" on both sides
                                                                  of the break. Allow 30 minutes to dry.

                                                                  NOTE: Thoroughly mix the paint before use.
2.    Touch one tester probe to the window antenna
     terminal, and move the other tester probe along the
     antenna wires to check that continuity exists.

                                   WINDOW ANTENNA
                                   TERMINAL




                                                                                                               PAINT




                                                             4.   Check for continuity in the repaired wire.

                                                             5.   Apply a second coat of paint in the same way. Let it dry
                                                                  3 hours before removing the tape.
