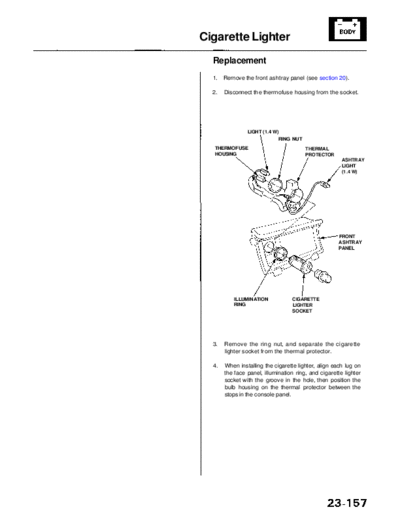

Image preview - the first page of the document



>> Download RL9604S23157A documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents


                                Cigarette Lighter
                                  Replacement
                                  1.   Remove the front ashtray panel (see section 20).

                                  2.   Disconnect the thermofuse housing from the socket.




                                                LIGHT (1.4 W)
                                                             RING NUT
                                  THERMOFUSE                            THERMAL
                                  HOUSING                               PROTECTOR
                                                                                       ASHTRAY
                                                                                       LIGHT
                                                                                       (1.4 W)




                                                                                      FRONT
                                                                                      ASHTRAY
                                                                                      PANEL




                                           ILLUMINATION           CIGARETTE
                                           RING                   LIGHTER
                                                                  SOCKET




                                  3.   Remove the ring nut, and separate the cigarette
                                       lighter socket from the thermal protector.

                                  4.   When installing the cigarette lighter, align each lug on
                                       the face panel, illumination ring, and cigarette lighter
                                       socket with the groove in the hole, then position the
                                       bulb housing on the thermal protector between the
                                       stops in the console panel.
