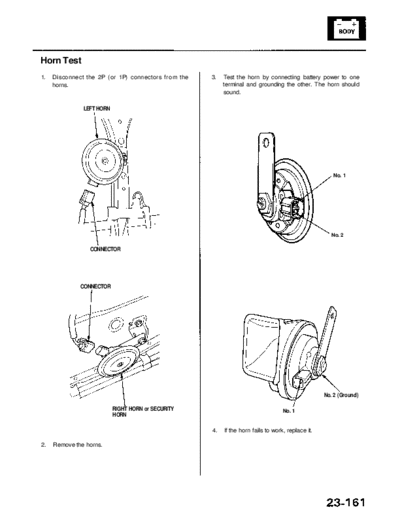

Image preview - the first page of the document



>> Download RL9604S23161A documenatation <<

Text preview - extract from the document

            Main Menu                Table of Contents




Horn Test
1.   Disconnect the 2P (or 1P) connectors from the       3.   Test the horn by connecting battery power to one
     horns.                                                   terminal and grounding the other. The horn should
                                                              sound.

               LEFT HORN




                                                                                                          No. 1




                                                                                                          No. 2

                 CONNECTOR




              CONNECTOR




                                                                                                       No. 2 (Ground)

                           RIGHT HORN or SECURITY                                      No. 1
                           HORN

                                                         4.   If the horn fails to work, replace it.

2.   Remove the horns.
