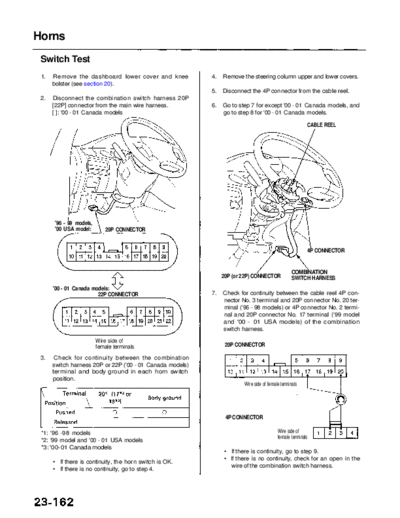

Image preview - the first page of the document



>> Download RL9604S23162A documenatation <<

Text preview - extract from the document

              Main Menu                      Table of Contents


Horns
 Switch Test
 1.   Remove the dashboard lower cover and knee                  4.   Remove the steering column upper and lower covers.
      bolster (see section 20).
                                                                 5.   Disconnect the 4P connector from the cable reel.
 2.   Disconnect the combination switch harness 20P
      [22P] connector from the main wire harness.                6.   Go to step 7 for except '00 - 01 Canada models, and
      [ ]: '00 - 01 Canada models                                     go to step 8 for '00 - 01 Canada models.

                                                                                                               CABLE REEL




       '96 - 99 models,
       '00 USA model:        20P CONNECTOR


                                                                                                               4P CONNECTOR


                                                                                                       COMBINATION
                                                                      20P (or 22P) CONNECTOR           SWITCH HARNESS
      '00 - 01 Canada models:
                        22P CONNECTOR                            7.   Check for continuity between the cable reel 4P con-
                                                                      nector No. 3 terminal and 20P connector No. 20 ter-
                                                                      minal ('96 - 98 models) or 4P connector No. 2 termi-
                                                                      nal and 20P connector No. 17 terminal ('99 model
                                                                      and '00 - 01 USA models) of the combination
                                                                      switch harness.

                          Wire side of
                          female terminals                             20P CONNECTOR

 3.    Check for continuity between the combination
      switch harness 20P or 22P ('00 - 01 Canada models)
      terminal and body ground in each horn switch
      position.
                                                                              Wire side of female terminals




                                                                       4P CONNECTOR

 *1: '96 -98 models                                                                             Wire side of
                                                                                                female terminals
 *2: '99 model and '00 - 01 USA models
 *3: '00-01 Canada models
