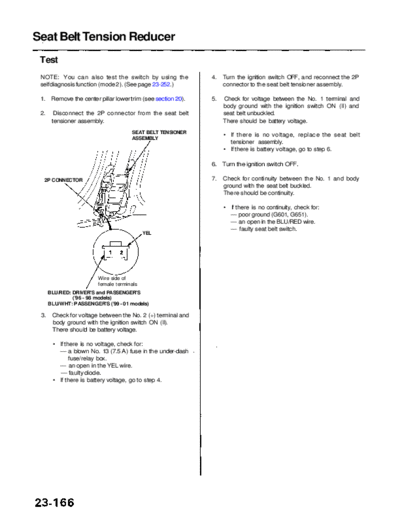

Image preview - the first page of the document



>> Download RL9604S23166A documenatation <<

Text preview - extract from the document

               Main Menu                    Table of Contents


Seat Belt Tension Reducer
 Test
 NOTE: You can also test the switch by using the                4.   Turn the ignition switch OFF, and reconnect the 2P
 selfdiagnosis function (mode 2). (See page 23-252.)                 connector to the seat belt tensioner assembly.

 1.    Remove the center pillar lower trim (see section 20).    5.   Check for voltage between the No. 1 terminal and
                                                                     body ground with the ignition switch ON (II) and
 2.     Disconnect the 2P connector from the seat belt               seat belt unbuckled.
       tensioner assembly.                                           There should be battery voltage.

                                      SEAT BELT TENSIONER
