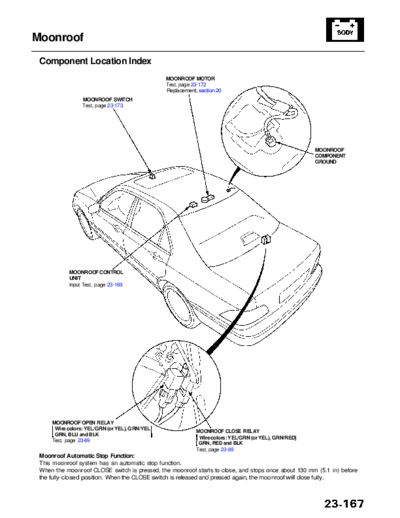

             Main Menu                 Table of Contents


Moonroof
 Component Location Index
                                                  MOONROOF MOTOR
                                                  Test, page 23-172
                                                  Replacement, section 20
                 MOONROOF SWITCH
                 Test, page 23-173




                                                                                                         MOONROOF
                                                                                                         COMPONENT
                                                                                                         GROUND




           MOONROOF CONTROL
           UNIT
           Input Test, page 23-169




     MOONROOF OPEN RELAY
      Wire colors: YEL/GRN (or YEL), GRN/YEL
                                                              MOONROOF CLOSE RELAY
      GRN, BLU and BLK
                                                               Wire colors: YEL/GRN (or YEL), GRN/RED]
     Test, page 23-69
                                                               GRN, RED and BLK
                                                              Test, page 23-69
 Moonroof Automatic Stop Function:
 This moonroof system has an automatic stop function.
 When the moonroof CLOSE switch is pressed, the moonroof starts to close, and stops once about 130 mm (5.1 in) before
 the fully-closed position. When the CLOSE switch is released and pressed again, the moonroof will close fully.
