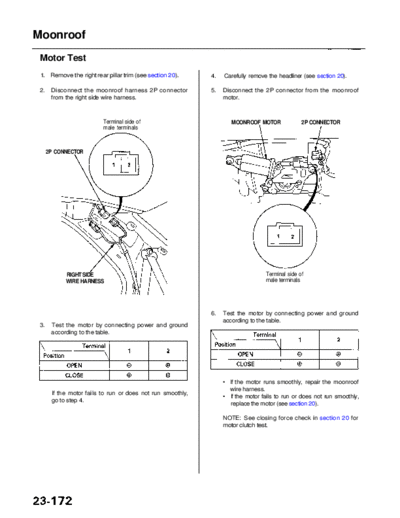

Image preview - the first page of the document



>> Download RL9604S23172A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents

Moonroof
 Motor Test
 1. Remove the right rear pillar trim (see section 20).      4.   Carefully remove the headliner (see section 20).

 2.    Disconnect the moonroof harness 2P connector          5.   Disconnect the 2P connector from the moonroof
       from the right side wire harness.                          motor.



                          Terminal side of                           MOONROOF MOTOR              2P CONNECTOR
                          male terminals



      2P CONNECTOR




            RIGHT SIDE                                                            Terminal side of
            WIRE HARNESS                                                          male terminals




                                                             6.   Test the motor by connecting power and ground
                                                                  according to the table.
 3.    Test the motor by connecting power and ground
       according to the table.
