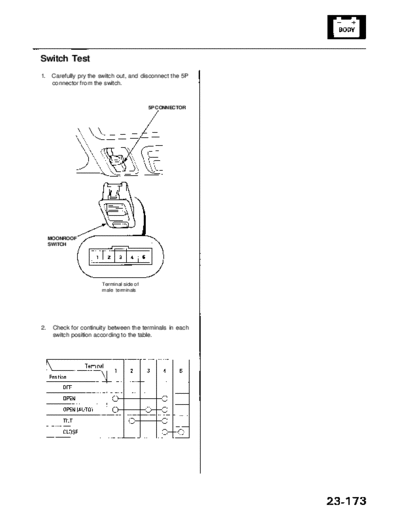

Image preview - the first page of the document



>> Download RL9604S23173A documenatation <<

Text preview - extract from the document

              Main Menu                      Table of Contents




Switch Test
1.    Carefully pry the switch out, and disconnect the 5P
      connector from the switch.



                                                5P CONNECTOR




     MOONROOF
     SWITCH




                          Terminal side of
                          male terminals




2.    Check for continuity between the terminals in each
      switch position according to the table.
