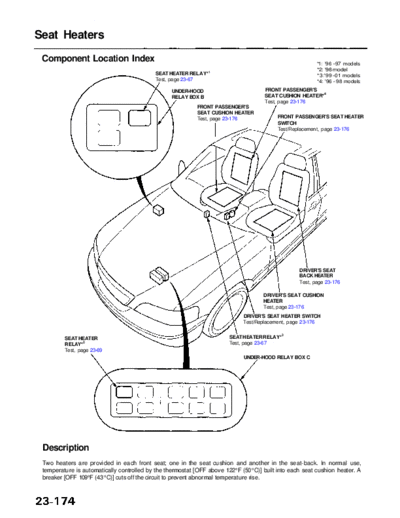

Image preview - the first page of the document



>> Download RL9604S23174A documenatation <<

Text preview - extract from the document

             Main Menu                Table of Contents


Seat Heaters
 Component Location Index                                                                                *1: '96 -97 models
                                                                 1                                       *2: '98 model
                                            SEAT HEATER RELAY*                                           *3:'99-01 models
                                            Test, page 23-67                                             *4: '96 - 98 models
                                                   UNDER-HOOD                        FRONT PASSENGER'S
                                                   RELAY BOX B                       SEAT CUSHION HEATER*4
                                                                                     Test, page 23-176
                                                           FRONT PASSENGER'S
                                                           SEAT CUSHION HEATER
                                                           Test, page 23-176              FRONT PASSENGER'S SEAT HEATER
                                                                                          SWITCH
                                                                                          Test/Replacement, page 23-176




                                                                                                  DRIVER'S SEAT
                                                                                                  BACK HEATER
                                                                                                  Test, page 23-176

                                                                                    DRIVER'S SEAT CUSHION
                                                                                    HEATER
                                                                                    Test, page 23-176
                                                                             DRIVER'S SEAT HEATER SWITCH
                                                                             Test/Replacement, page 23-176


         SEAT HEATER                                                   SEAT HEATER RELAY*3
         RELAY*2                                                       Test, page 23-67
         Test, page 23-69
                                                                             UNDER-HOOD RELAY BOX C




 Description
 Two heaters are provided in each front seat; one in the seat cushion and another in the seat-back. In normal use,
 temperature is automatically controlled by the thermostat [OFF above 122
