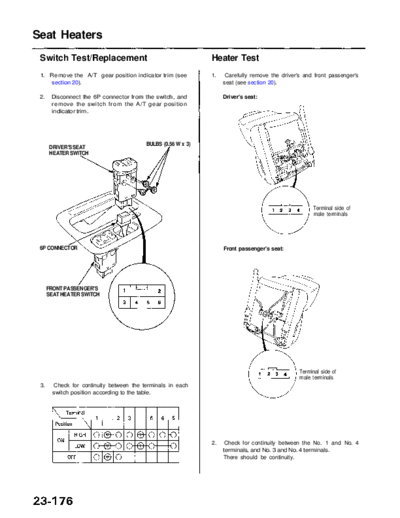

Image preview - the first page of the document
>> Download RL9604S23176A documenatation <<Text preview - extract from the document Main Menu Table of Contents
Seat Heaters
Switch Test/Replacement Heater Test
1. Remove the A/T gear position indicator trim (see 1. Carefully remove the driver's and front passenger's
section 20). seat (see section 20).
2. Disconnect the 6P connector from the switch, and Driver's seat:
remove the switch from the A/T gear position
indicator trim.
BULBS (0.56 W x 3)
DRIVER'S SEAT
HEATER SWITCH
Terminal side of
male terminals
6P CONNECTOR Front passenger's seat:
FRONT PASSENGER'S
SEAT HEATER SWITCH
Terminal side of
male terminals
3. Check for continuity between the terminals in each
switch position according to the table.
2. Check for continuity between the No. 1 and No. 4
terminals, and No. 3 and No. 4 terminals.
There should be continuity.
