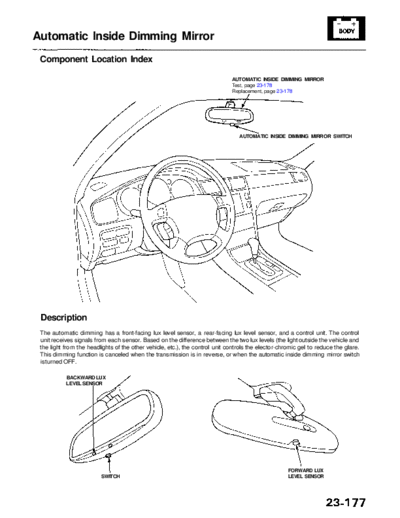

RL9604S23177A


>> Download RL9604S23177A documenatation <<

Text preview - extract from the document
               Main Menu                 Table of Contents


Automatic Inside Dimming Mirror
 Component Location Index

                                                                              AUTOMATIC INSIDE DIMMING MIRROR
                                                                              Test, page 23-178
                                                                              Replacement, page 23-178




                                                                                 AUTOMATIC INSIDE DIMMING MIRROR SWITCH




 Description
 The automatic dimming has a front-facing lux level sensor, a rear-facing lux level sensor, and a control unit. The control
 unit receives signals from each sensor. Based on the difference between the two lux levels (the light outside the vehicle and
 the light from the headlights of the other vehicle, etc.), the control unit controls the elector-chromic gel to reduce the glare.
 This dimming function is canceled when the transmission is in reverse, or when the automatic inside dimming mirror switch
 is turned OFF.
