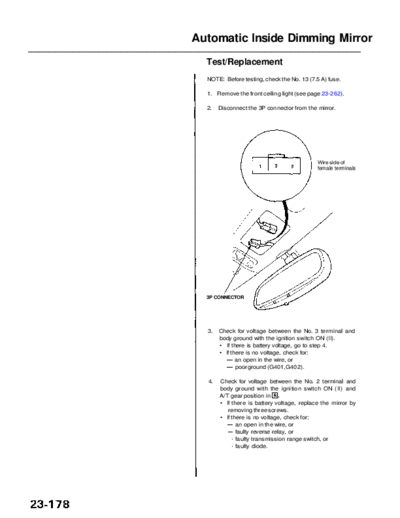

Image preview - the first page of the document



>> Download RL9604S23178A documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents



                                Automatic Inside Dimming Mirror
                                  Test/Replacement
                                  NOTE: Before testing, check the No. 13 (7.5 A) fuse.

                                  1. Remove the front ceiling light (see page 23-262).

                                  2.   Disconnect the 3P connector from the mirror.




                                                                            Wire side of
                                                                            female terminals




                                  3P CONNECTOR




                                  3.   Check for voltage between the No. 3 terminal and
                                       body ground with the ignition switch ON (II).
