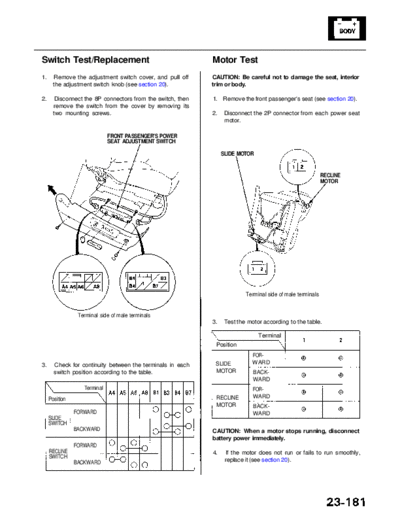

Image preview - the first page of the document



>> Download RL9604S23181A documenatation <<

Text preview - extract from the document

                Main Menu                  Table of Contents




Switch Test/Replacement                                        Motor Test
1.      Remove the adjustment switch cover, and pull off       CAUTION: Be careful not to damage the seat, interior
       the adjustment switch knob (see section 20).            trim or body.

2.     Disconnect the 8P connectors from the switch, then      1.   Remove the front passenger's seat (see section 20).
       remove the switch from the cover by removing its
       two mounting screws.                                    2.   Disconnect the 2P connector from each power seat
                                                                    motor.

                              FRONT PASSENGER'S POWER
                              SEAT ADJUSTMENT SWITCH

                                                                    SLIDE MOTOR


                                                                                                               RECLINE
                                                                                                               MOTOR




                                                                             Terminal side of male terminals


                 Terminal side of male terminals
                                                               3.    Test the motor according to the table.

                                                                                  Terminal
                                                                Position
                                                                                FOR-
                                                                SLIDE           WARD
3.     Check for continuity between the terminals in each
       switch position according to the table.                  MOTOR           BACK-
                                                                                WARD
                   Terminal                                                     FOR-
                                                                RECLINE         WARD
     Position
                                                                MOTOR           BACK-
                FORWARD                                                         WARD
     SLIDE
     SWITCH
                BACKWARD                                       CAUTION: When a motor stops running, disconnect
                                                               battery power immediately.
                FORWARD
     RECLINE                                                   4.     If the motor does not run or fails to run smoothly,
     SWITCH
                BACKWARD                                             replace it (see section 20).
