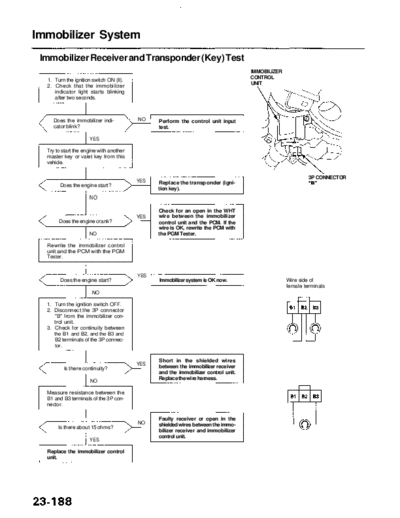

Image preview - the first page of the document



>> Download RL9604S23188A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents


Immobilizer System
 Immobilizer Receiver and Transponder (Key) Test
                                                                                     IMMOBILIZER
  1. Turn the ignition switch ON (II).                                               CONTROL
  2. Check that the immobilizer                                                      UNIT
     indicator light starts blinking
     after two seconds.



    Does the immobilizer indi-           NO      Perform the control unit input
    cator blink?                                 test.

                     YES

  Try to start the engine with another
  master key or valet key from this
  vehicle.

                                                                                                            3P CONNECTOR
                                         YES     Replace the transponder (igni-
        Does the engine start?
                                                 tion key).
                     NO

                                                 Check for an open in the WHT
                                         YES     wire between the immobilizer
       Does the engine crank?                    control unit and the PCM. If the
                                                 wire is OK, rewrite the PCM with
                     NO                          the PGM Tester.

  Rewrite the immobilizer control
  unit and the PCM with the PGM
  Tester.


                                         YES
        Does the engine start?                   Immobilizer system is OK now.                     Wire side of
                                                                                                   female terminals
                      NO

  1. Turn the ignition switch OFF.
  2. Disconnect the 3P connector
     "B" from the immobilizer con-
     trol unit.
  3. Check for continuity between
     the B1 and B2, and the B3 and
     B2 terminals of the 3P connec-
     tor.

                                                 Short in the shielded wires
                                         YES     between the immobilizer receiver
         Is there continuity?
                                                 and the immobilizer control unit.
                                                 Replace the wire harness.
                     NO

  Measure resistance between the
  B1 and B3 terminals of the 3P con-
  nector.

                                                 Faulty receiver or open in the
                                         NO      shielded wires between the immo-
       Is there about 15 ohms?
                                                 bilizer receiver and immobilizer
                                                 control unit.
                     YES

  Replace the immobilizer control
  unit.
